STAINLESS STEEL LONG PRODUCTS
WELDED/SEAMLESS PIPES &HOLLOW SECTIONS
Types : Boiler pipes, eheat exchanger pipes, condesator pipes, decorative pipes, exhaust pipes, sanitary pipes, industrial pipes, oval pipes, special shape and grade pipes, pipes for general use
Surface : Pickled, annealed, polished
Standard : ASTM A213 / ASTM A249 / ASTM A268/ ASTM A269 / ASTM A270 / ASTM A312 ASTM A554
Grades : 201, 202, 409, 410, 420, 430, 430F, 304, 304L, 310S, 316, 316L, 317, 321,904L
ASTM A554 WELDED PIPES AND HOLLOW SECTIONS 180 / 240 / 400 / 600 / 800 Grit Polished
STAINLESS STEEL BARS
Grades : AISI 201, 202, 204Cu, 303, 304, 304L, 316, 310S, 420, 430, 430F, 316L
Length : 3,4,6 meters (Special lengths can be supplied upon request)

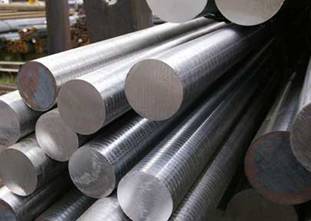

ROUND BARS
MATERIAL |
MIN. DIAMETER |
MAX.DIAMETER |
TOLERANCE |
Cold Drawn Bright Bars |
1.80 mm |
30 mm |
h8,h9,h10,h11 |
Peeled, Polished Bars |
20 mm |
100 mm |
h9,h10,h11,k10,k12,k13 |
Hot Rolled/Peeled Bars |
20 mm |
150 mm |
h9,h10,h11,k10,k12,k13 |
Forgedi Rough Turned Bars |
150 mm |
250 mm |
h11,k13 DIN1013 |

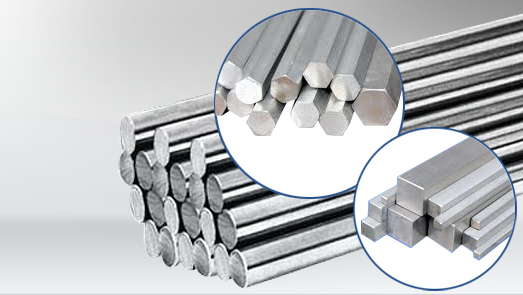

SQUARE AND HEXAGONAL BARS
MATERIAL |
MIN. DIAMETER |
MAX.DIAMETER |
TOLERANCE |
Cold Drawn Bright Bars |
3.00 mm |
50.00 mm |
h11 DIN176/178 |

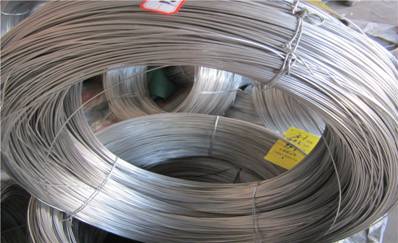

WIRE AND WIRERODS
Grades : 303, 304, 304L ,316, 316L, 302HQ, 304HC, 321, 316Ti, 308L, 309L,
MATERIAL |
MIN. DIAMETER |
MAX.DIAMETER |
Bright and Matte Wires |
0.9 mm |
22 mm |
Wirerod |
5.5 mm |
32 mm |
